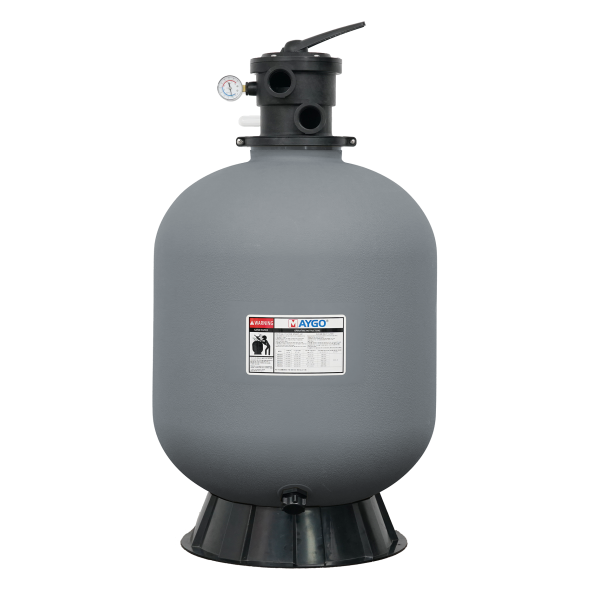

Wholesale 620mm Sand Filters for In/Above Ground Pool | PE Plastic Material
Wholesale 620mm Sand Filters for In/Above Ground Pool | PE Plastic Material






Detail Information
Wholesale 620mm Sand Filters for In/Above Ground Pool | PE Plastic Material

Working Condition●Max Working Pressure:200kpa/28psi/2.0bar●Factory Testing Pressure:300kpa/44psi/3.0bar●Max Water Temp:40℃(104℉)●Size Of Silica Sand:0.5-0.8mm●Max Filtration Velocity:50m³/h/㎡Color can be customized
Performance Table
Model No. |
A | C | Filter Area(㎡) |
Valve Connections |
Max Flow Rate | Sand(KG) | ||||
mm | in | mm | in | |||||||
NGA2501 | 360 | 14.2 | 730 | 28.7 | 0.1 | 1.5inch | 50mm | 72LPM | 4.32m³/h | 20 |
NGA2502 | 400 | 15.7 | 810 | 31.9 | 0.13 | 1.5inch | 50mm | 102LPM | 6.12m³/h | 35 |
NGA2503 | 460 | 18.1 | 840 | 33.1 | 0.16 | 1.5inch | 50mm | 130LPM | 7.8m³/h | 45 |
NGA2504 | 510 | 20.1 | 860 | 33.9 | 0.22 | 1.5inch | 50mm | 180LPM | 10.8m³/h | 85 |
NGA2505 | 620 | 24.4 | 1075 | 42.3 | 0.31 | 1.5inch | 50mm | 255LPM | 15.3m³/h | 145 |
Installation Sketch

Features

NGA Plastic Top Mounted Sand FiltersFeatures
●Transparent lid cover allows easy inspection of the sand bed
●Top diffuser ensures even distribution of water over the top of the sand bed
●Air relief enables easy release of trapped air during operation of the filter
●Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action
